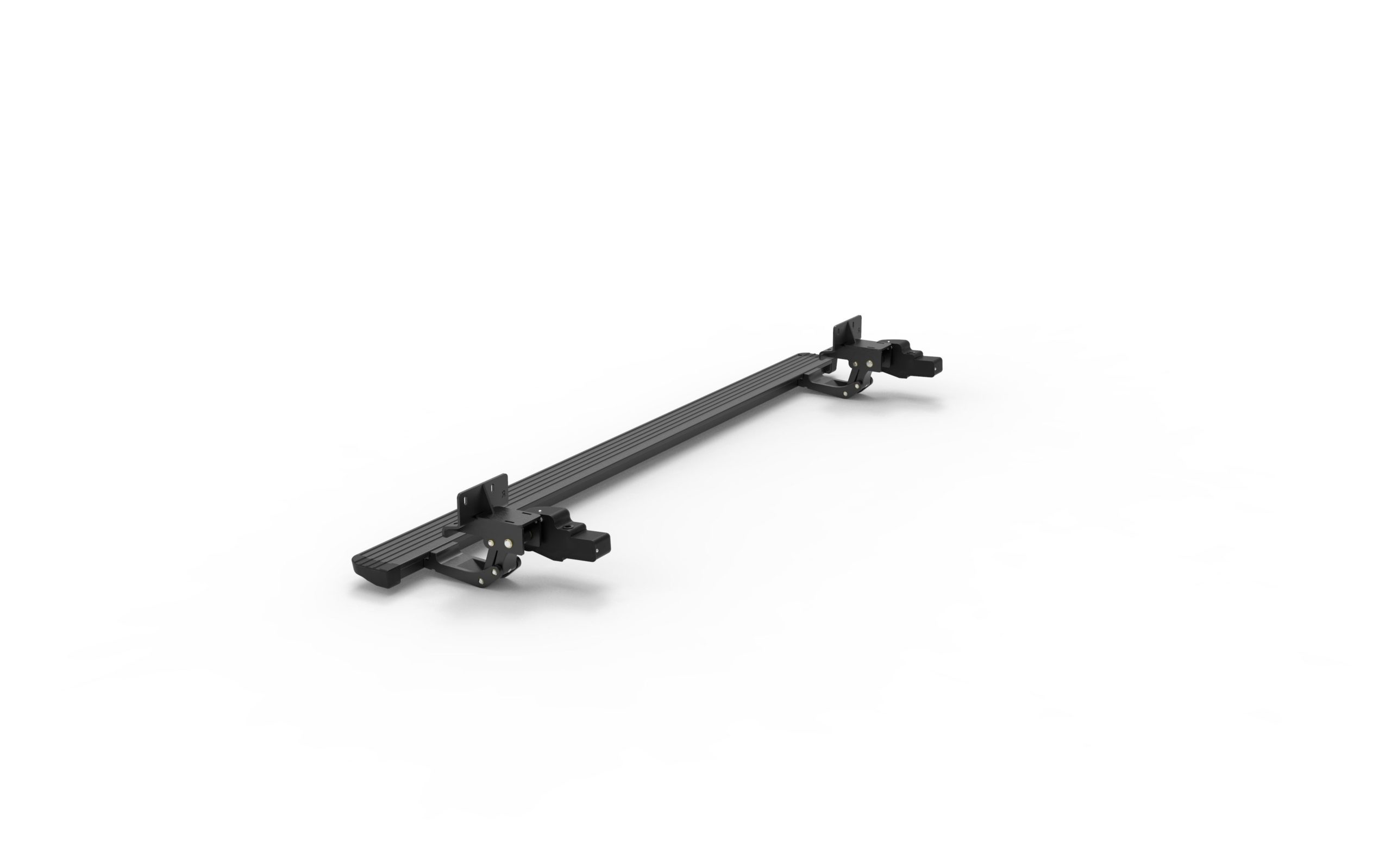

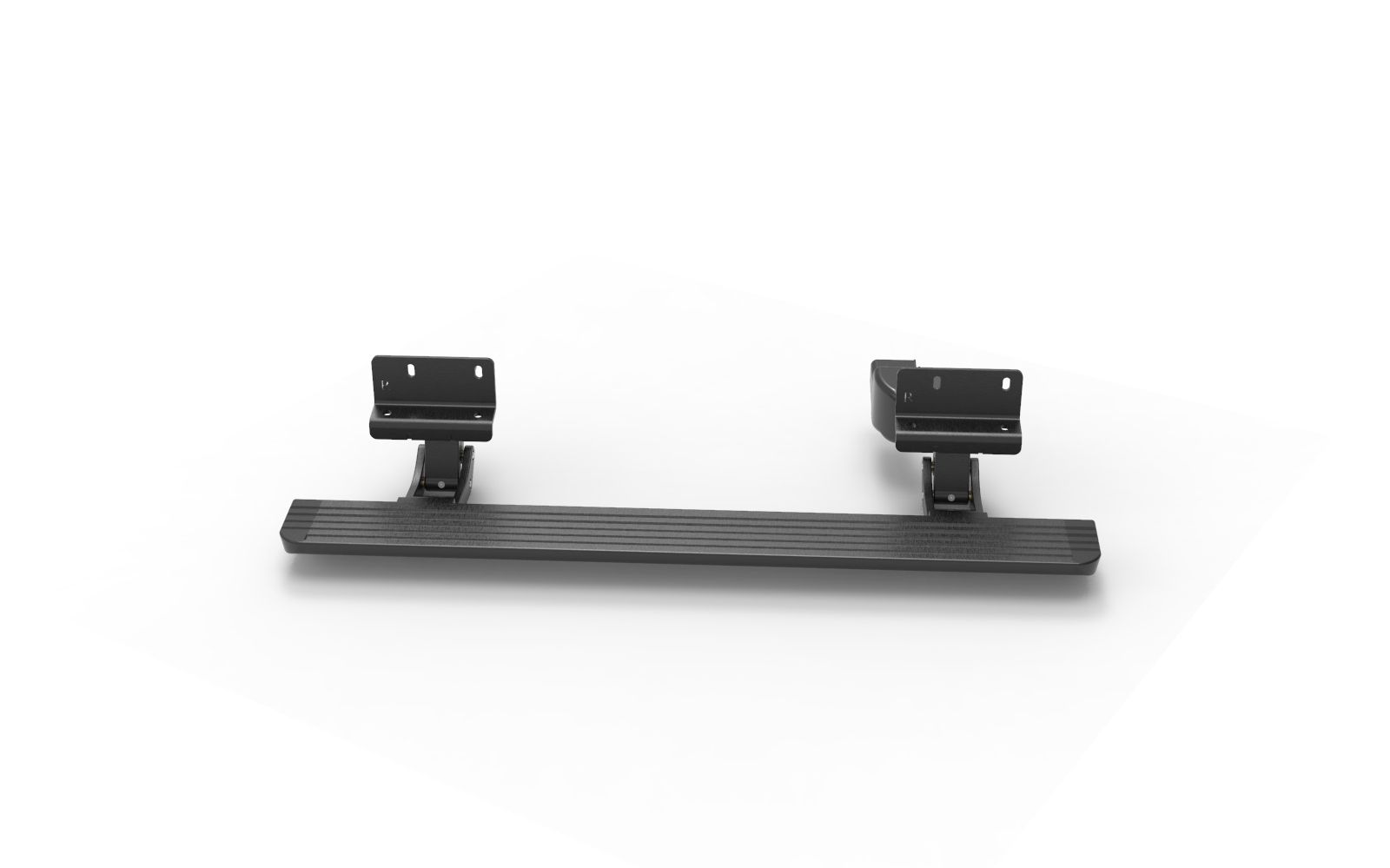

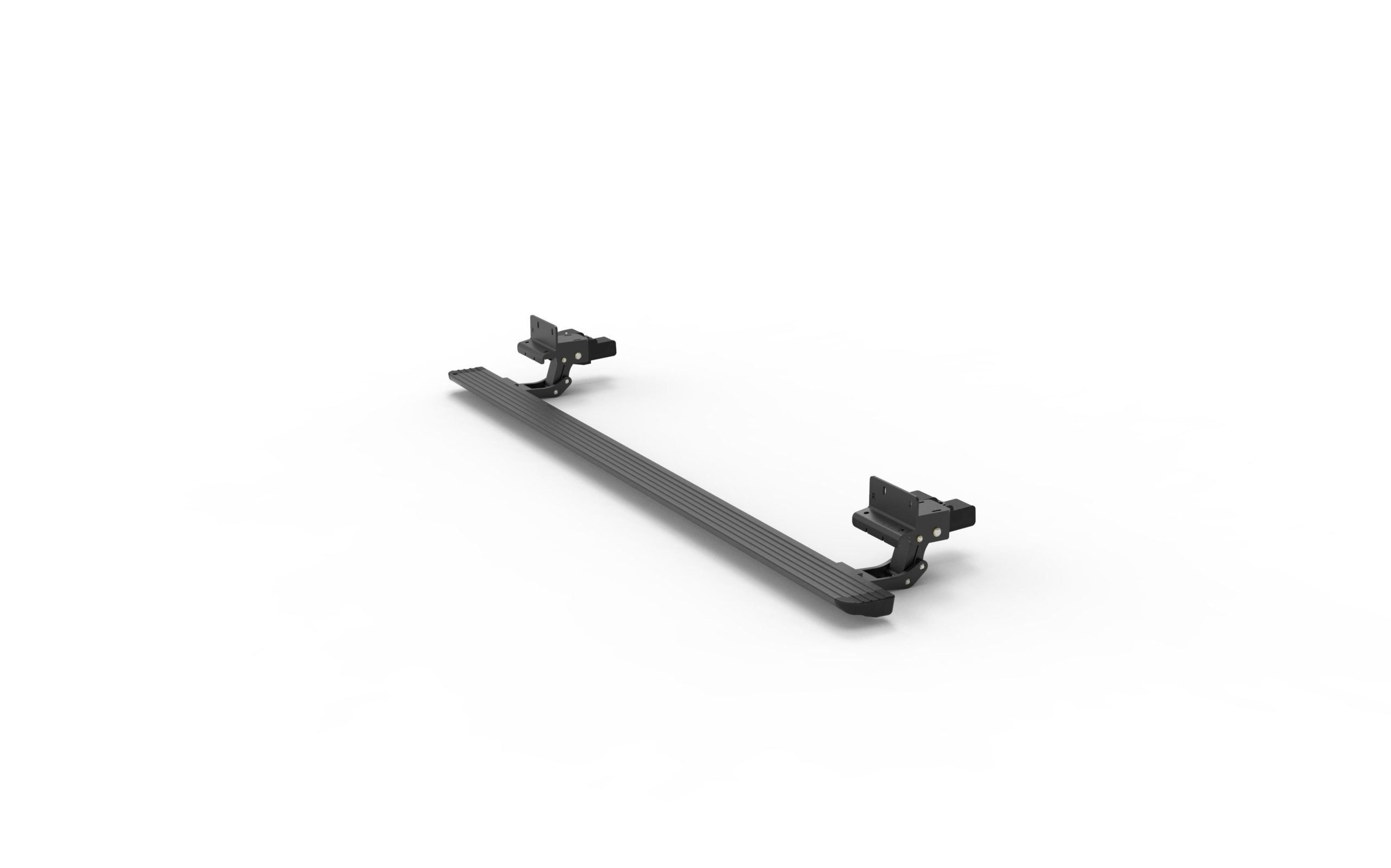

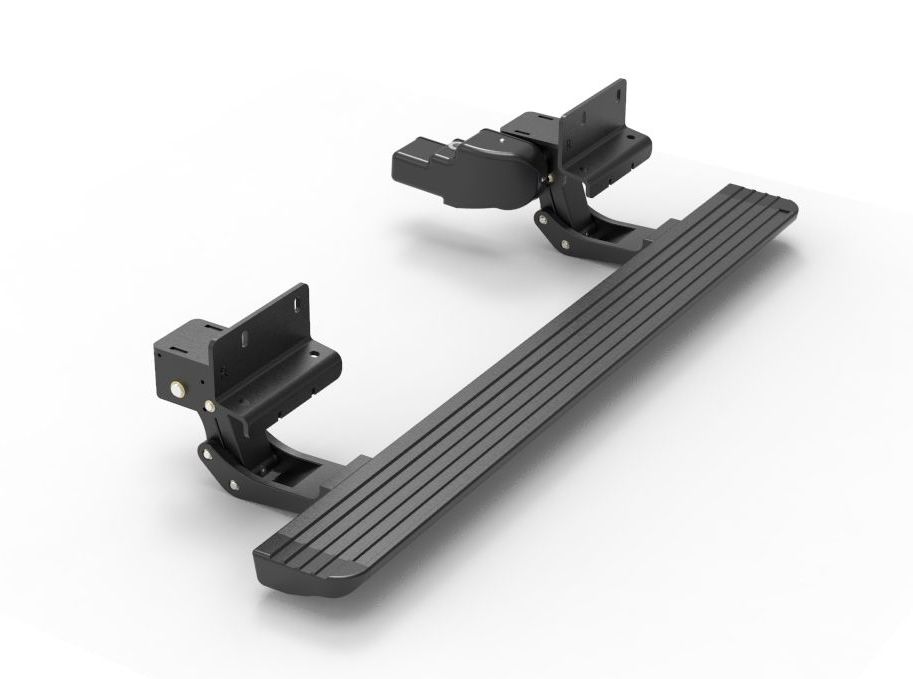

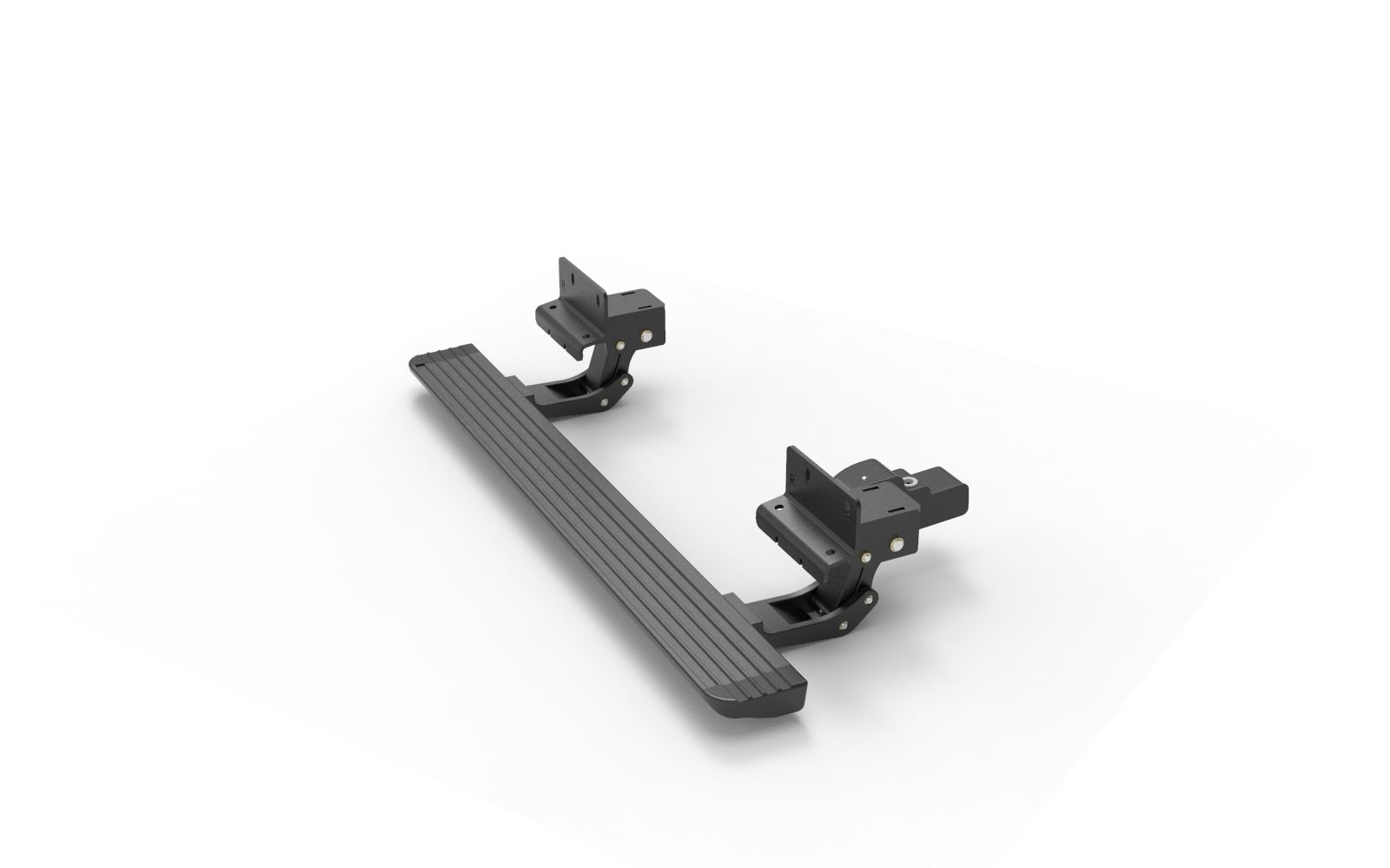

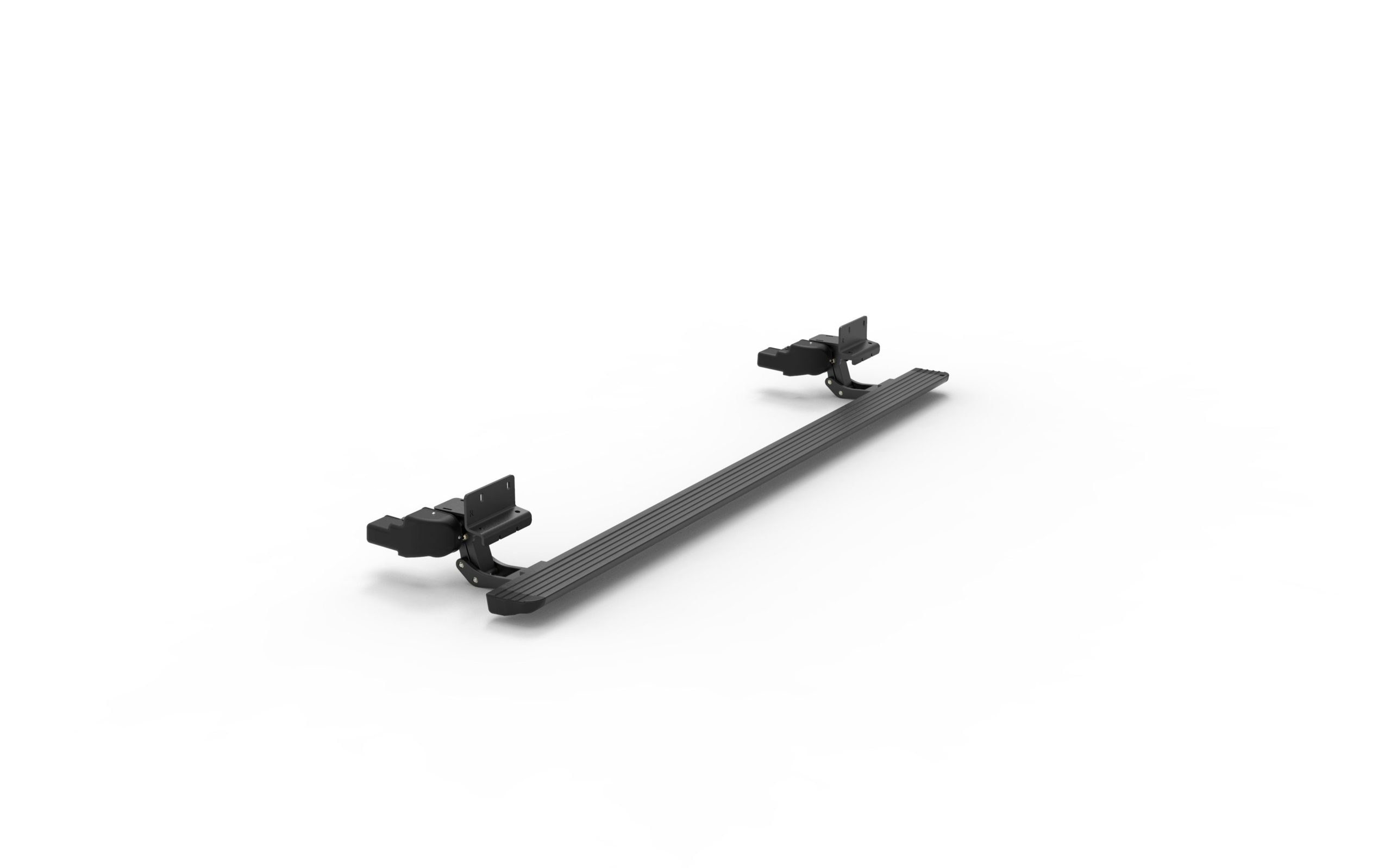

VBoard SStep – Automatic Electric Sliding Step System

The V-Board Series Sliding Step System by Veldo is a fully automatic electric step designed to make entering and exiting commercial vehicles safe and effortless. The step deploys automatically when the door is opened and retracts completely when the door closes — it never moves independently.

How It Works

• Moves automatically when doors are opened to assist entry/exit
• Returns to closed position when doors close — does not open independently
• Stops automatically when any obstacle is detected during opening, then returns to closed position
• Resumes normal operation when door is next opened
• Integrated LED lighting activates with door opening

Technical Specifications

• Voltage: 12V DC
• Load capacity: 300 kg
• Step width options: 130 mm, 170 mm, or 230 mm compression surface
• Weight: 12–30 kg depending on variant
• Motor: Reversible or non-reversible options available
• Certification: ECE R10 / E-mark

Materials

• Movement mechanism: Aluminum with stainless steel shafts
• Step surface: Aluminum with specialized protective coating
• Corrosion-resistant design for all weather conditions

Vehicle Compatibility

• Ford Transit, Ford Ranger
• Mercedes-Benz Sprinter, Vito
• Volkswagen Crafter
• Fiat Ducato
• Hyundai Staria
• And many other OEM applications (custom sizes available)

Pricing & Ordering

Contact us for pricing and fitment details. Custom widths and configurations available to order.
